Usage:

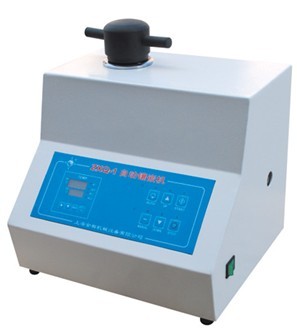

ZXQ-1 Automatic Inlaying Machine is used to inlay small specimens, specimens in irregular shapes, or specimens which are not easy to take up-the preceding process before grinding and polishing metallurgical or rock specimens. The inlaying operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallurgical microscope.
　　 The machine is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatic way. With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot solid materials (such as urea-formaldehyde molding powder and Bakelite powder) with the temperature automatically regulated and controlled.

Technical Date:

The Specifications of the Specimen Formed under pressure：Ï?2mm，Ï?0mm，Ï?5mm
The Heaterï¼?20V 650W
The Total Electric Powerï¼?000W
Frequency Adjusterï¼?00W
The Total Dimensionï¼?80*350*420mm
Net Weightï¼?0Kg
