Function:

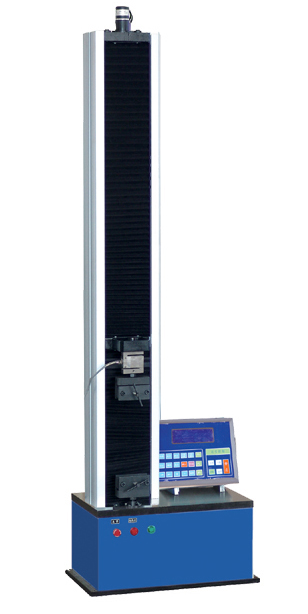

LDS series are suitable for tensile, compression, bending, cutting shearing and tearing test of rubber, peeling and tearing plastic, electrical wire and cable, composite, profiled bar, waterproof roll, etc. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise
It confirms to ISO 75001，ASTM A370, ASTM E4 ASTM E8 and JIS, DIN, BSEN testing standards

Specification:

Model LDS-1 LDS-2 LDS-5 LDS-10 LDS-20
Measuring range of testing force (kN) 0.02～1 0.04～2 0.1～5 0.2～10 0.4～20
Accuracy of testing force ≤±1% of indicated value；
Resolution of crosshead displacement Measurement 0.01 mm
Speed range of crossbeam 0.01 mm/min～500 mm/min，step less speed regulation and arbitrary setting
Effective testing space (mm) 600mm
Power supply 380V±10%，50Hz
Working environment 10℃～40℃, relative humidity≦80%
Main configuration Imported servo motor and speed adjustment system,
precision photoelectric encoder, CELTRON load cell
Overall dimension of host machine (mm) lds-l,lds-2,lds-5:(600×420×1700) lds-10,lds-20:(740×500×1680)
Weight(kg) 300 450
